Ground fault leakage
Megger DCM305E

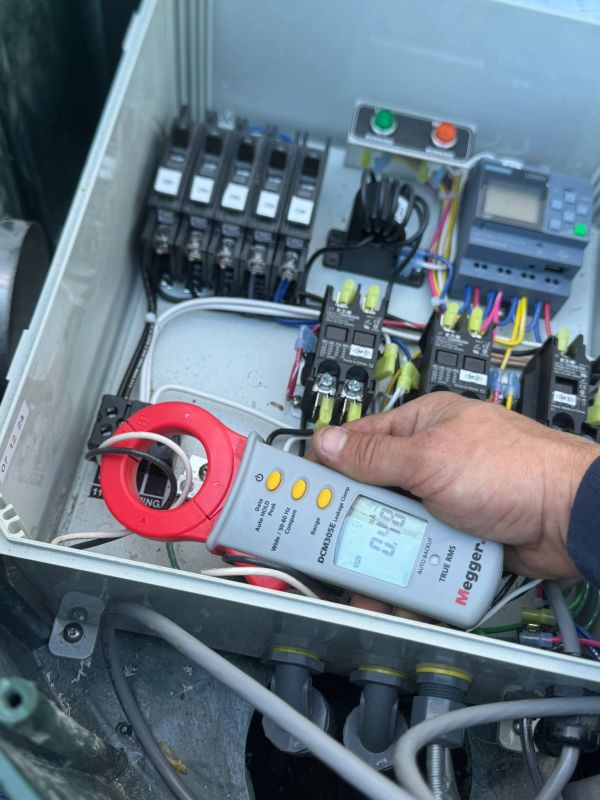

The Megger DCM305E is a True RMS digital clamp meter specifically designed to identify and measure earth leakage currents in electrical circuits. It is highly useful for troubleshooting circuits where RCDs (Residual Current Devices) are nuisance tripping, helping to distinguish between faulty wiring, damaged appliances, or an overly sensitive RCD.
The Megger DCM305E is an essential diagnostic tool for electricians primarily because it measures microscopic amounts of AC earth leakage current (0.001 mA) without needing to disconnect circuits or equipment.
vital for troubleshooting:
- Solves Nuisance Tripping: When an RCD (Residual Current Device) or RCBO keeps tripping unexpectedly, this meter helps technicians determine whether the fault lies with a degrading appliance, a damaged cable, or a faulty, over-sensitive RCD.
- Pinpoints Hidden Faults: By clamping around the live and neutral conductors at once, the meter measures the "leak". It can efficiently trace invisible electrical noise, failing electronic ballasts, and faulty dimmer modules that conventional multimeters miss.
- Filter Technology: Equipped with a built-in low-pass filter, it filters out high-frequency electrical "noise" and harmonics, providing steady, highly accurate measurements even in industrial or commercial environments.
- Predictive Maintenance: Electricians can use it to track incremental degradation in cable and equipment insulation, preventing unexpected system downtime and mitigating safety hazards.
- Safety Features: Exceeding safety standards (IEC1010-2-32), the meter is designed with physical hand guards and includes a visual/audible compare function that warns the user if current exceeds pre-set Class I or Class II appliance limits.
Fluke 1630-2 FC
The Fluke 1630-2 FC Earth Ground Clamp can measure AC leakage current just like the Megger DCM305E. Both tools are designed to accurately measure small AC currents (down to the milliamp level) without needing to break the circuit.
